Spec
- 最大出力measured at f = 63 Hz
- 122 dB / r = 1 m (3.3 ft); 2 pi
- 周波数特性
- 25 Hz - (60 Hz - 80 Hz, cont. adjustable) - 6 dB; 2 pi
- with HPF: 40 Hz - (60 Hz - 80 Hz, cont. adjustable) - 6 dB; 2 pi
- LFE:25 Hz - 120 Hz - 6 dB; 2 pi
- Total harmonic distortionmeasured at PE = - 14 dBu and f = 50 Hz
- 89 dB / r = 1 m (3.3 ft)
- Inherent noise sound level
- GK0 / DIN 15996 r = 1 m
- Nominal Input level
- - 9 dBu - + 6 dBu adjustable
- Nominal Output level HPCH1, CH2
- + 6 dBu at 2 kOhm symmetrically
- Input impedance
- 10 kOhm RC symmetrically
- Bass output level
- adjustable
- Output power of the PWM-amplifier
- max. 1000 W / 4 Ohm
- Electronic Crossover frequencies
- TP 24 dB / Okt. HP 12 dB / Okt.
- Distance compensation
- adjustable from 0 - 1 m (3.3 ft) difference to the front speaker's plane
- Power requirements
- 90 - 132 V, 55 - 65 Hz or 190 - 265 V, 45 - 55 Hz
- 消費電力
- 20 VA at stand-by, max. 500 VA at full load
- Operation and Clipping indicator
- LED on back side
- 入力端子
- 3x XLR 3F
- Output Connector
- 3x XLR 3M1x Speakon NL4 (activation BASIS 11KP)
- Connector for bypass-mode switch
- XLR 4M

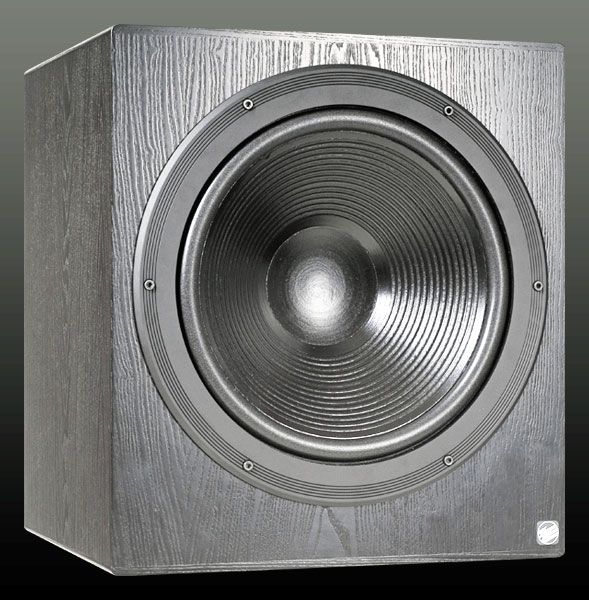

- Loudspeaker system
- 320 mm (12.5") cone
- 寸法(H x W x D)
- 550 x 500 x 430 mm
- 重量
- 37.8 kg
- Temperature requirements
- for use:+ 15°C - + 35°C
- for storage:- 25°C - + 45°C
- Humidity:45 - 75 %
