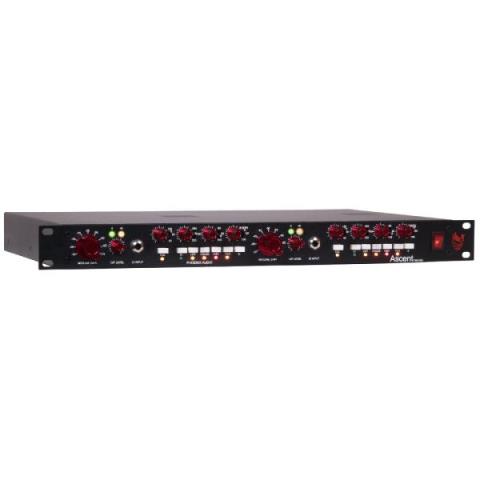

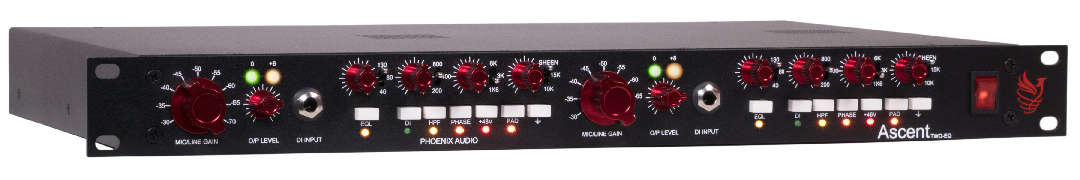

Phoenix Audio   Ascent Two EQ

2ch マイクプリアンプ

クラスAサーキットデザインに現代的なアプローチを取り入れた2chのプリアンプです。ユニークなAscentサーキットは超クリーンなサウンドからブリティッシュなヴィンテージデザインを彷彿とさせるウォームなサチュレーションサウンドまで自在に再現することができます。
汎用性も高く、高品質なサウンドを提供するAscent Twoは現代のエンジニアにとって最先端の選択とも言えます。

トランスレスのバランスドインプットはクラスAサーキットデザインの高品質なプリアンプサウンドを速いトランジェントとフルフリーケンシー・スペクトラムで提供します。
周波数応答とスルーレートにおいてトランスベースの設計を遥かに凌駕するAscentデザインよって、入力されたフルシグナルを出力段でクリアでパンチのあるサウンドやウォームなヴィンテージサウンドにまで押し上げることができるのです。
10Kのハイインピーダンス設計はあらゆるボンマイクやダイナミックマイクに対応可能です。

税別価格¥370,000-
税込価格 ¥ 407,000 -

送料無料!!

沖縄及び離島,遠隔地は除きます

両店扱い ,新品です

在庫状況をお問い合わせください。

お問い合わせはこちらから!

To customers live in overseas!


特徴

  • トランスレスの超ハイインピーダンス入力段
  • カスタムワウンドDB694トランスを備えたDSOP-2ディスクリート出力段
  • PTFE銀メッキケーブルによるミリタリーグレードの配線
  • -15dBの入力パッド
  • LEDゲインメーター
  • プッシュボタン:ハイパス(-6dB @ 80Hz)、フェーズリバース、48Vファンタム電源
  • プリアンプゲインレンジ:-30 ~ -70(5dBステップ)
  • Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency response Class A (DSOP-2) output stage: 20Hz to 20kHz +- 0.5dB, Maximum

Spec

  • Class A (DSOP2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB, Maximum Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.
  • Output connections: XLR’s and TRS 1/4″ Jack on rear
  • Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage. Microphone inputs: XLR’s on Front and Rear Panels
  • 10K mic impedance for high quality performance with all mic particualry ribbons mics & dynamic mics
  • Transformer-balanced Output on each channel: Driven by the Phoenix Audio Class A DSOP-2 fully discrete output stage, each transformer is custom wound.
  • Individual Earth Lift: Push-button Switches
  • Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the fader.
  • Gain reduction: -15dB push-button pad switch (Mic input only)
  • High Input Impedance DI: Mono 1/4″ Jack on front panel
  • Gain Meter: LED Metering. (Green = 0dB, Red= +8dB, corresponding to "4" and "6" on a PPM Meter).
  • Phantom Power: Switchable phantom on Push-button Switche
  • High Pass Filter: on Push-button Switch
  • Vari-filter control 70hz to 400hz on a 21 postion detented control
  • Phase Reverse: on Push-button Switch
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency Response: DI Input Stage: -0.3dB @ 40Hz, - 0.5dB @ 25kHz
  • Typical Headroom: +26dB on Mic-Pre stage
  • DI Stage gain: Maximum of 30dB
  • Gyratory-based EQ Frequency Centres: (4 Bands) High - 25K 15K, 10K, Hi Mid - 6K, 3K, 1K6, Low Mid - 800Hz, 400Hz, 200Hz, Low - 130Hz, 80Hz, 40Hz
  • EQ Cut/Boost Levels: 16dB Cut/Boost Per Band with fully detented pots in 21 positions
  • All units are wired with PTFE silver military grade cable
  • 110V仕様

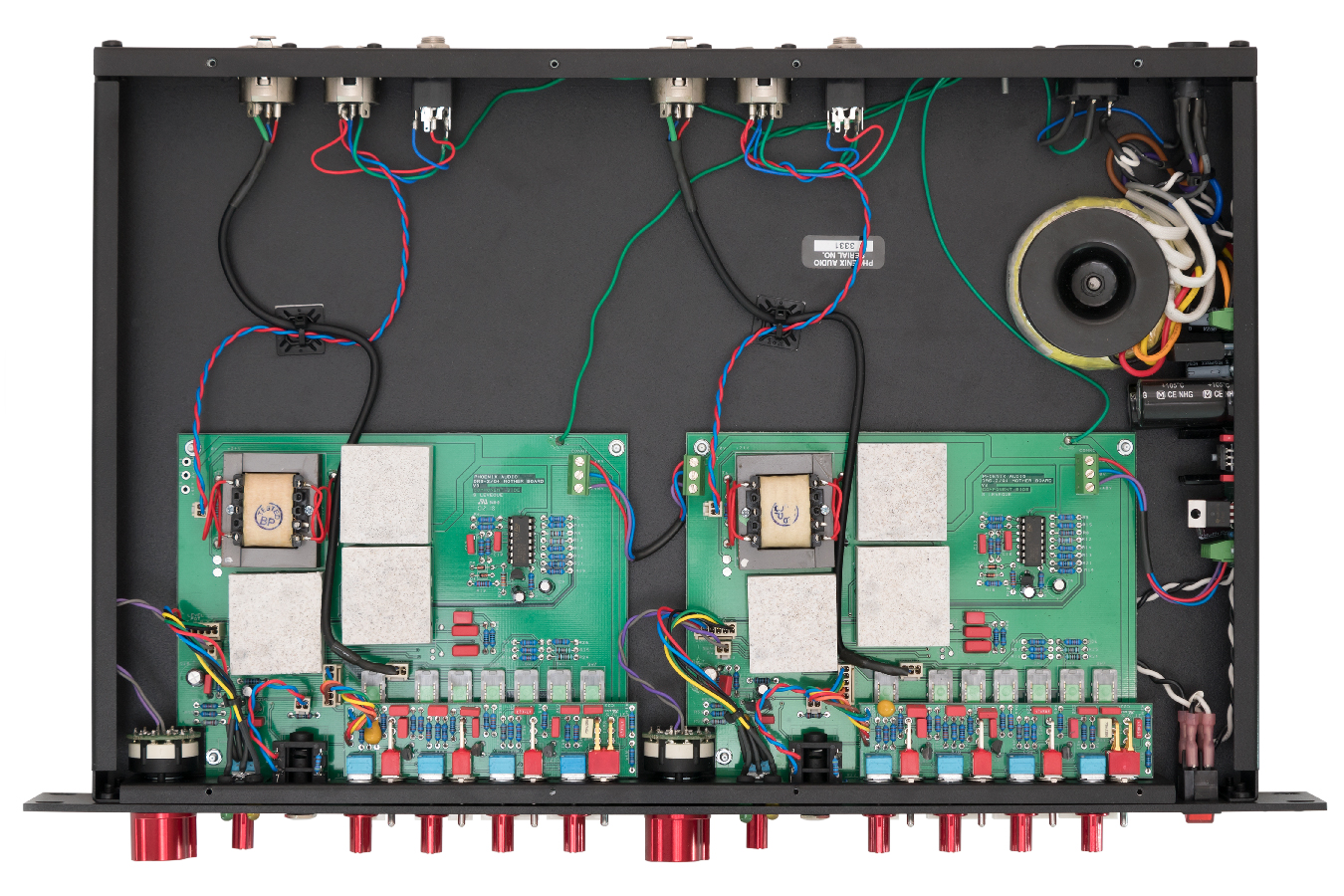

Ascent Two EQ追加画像
