特徴

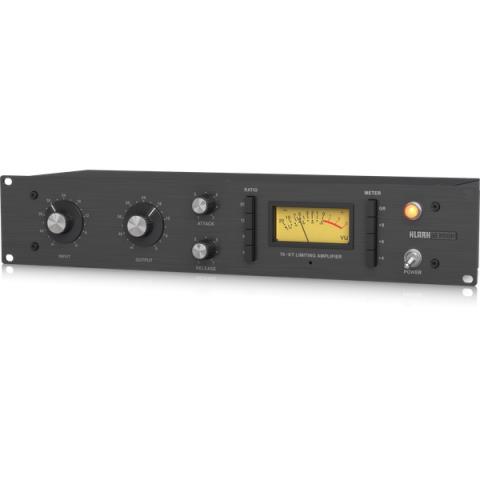

- 象徴的な1176LN、DおよびEリビジョンをモデルにした最上級品なFETスタイルのコンプレッサー
- 完全に分離した信号経路
- クラスAラインレベル出力アンプ
- カスタムメイドMIDAS入力/出力トランス
- 圧縮比のプッシュボタン選択:4:1、8:1、12:1、20:1
- 超高速アタック・タイム:20?800マイクロ秒
- 調整可能なリリース・タイム:80?700ミリ秒
- ビンテージスタイルのメーターは、ゲイン・リダクションと出力を表示
- Neutrik XLRコネクタを採用したトランス・バランス入力と出力
- ポータブルアプリケーションを考慮した耐久性を確保するための頑丈な2Uラックマウントシャーシ
- オートレンジユニバーサルスイッチモード電源
Spec
- Audio Input
- Type : XLR, 1/4" TRS transformer balanced
- Impedance : >600 Ω balanced and unbalanced
- Max. input level : +30 dBu
- Pad switch : -20 dB typical
- Audio Output
- Type : XLR, 1/4" TRS transformer balanced
- Impedance : 105 Ωbalanced and unbalanced
- Max. output level : +25 dBu
- System Specifications
- Frequency response : 20 Hz to 20 kHz ±1 dB
- S/N ratio : 80 dB @ +4 dBu
- Distortion (THD+N) : 0.15% typical
- Compressor
- Attack time : 25 to 760 μs adjustable
- Release time : 80 to 670 ms adjustable
- Ratio settings : 20:1, 12:1, 8:1, 4:1
- Meter settings : Gain reduction +8 / 6 / 4 dBu
- Power Supply
- Mains voltage : 100 - 240 V, 50/60 Hz
- Power consumption : 10 W
- Fuse : T1AH 250V
- Mains connection : Standard IEC receptacle
- Physical
- Dimensions (H x W x D) : 88 x 483 x 159 mm
- Weight : 2.8 kg
