Spec

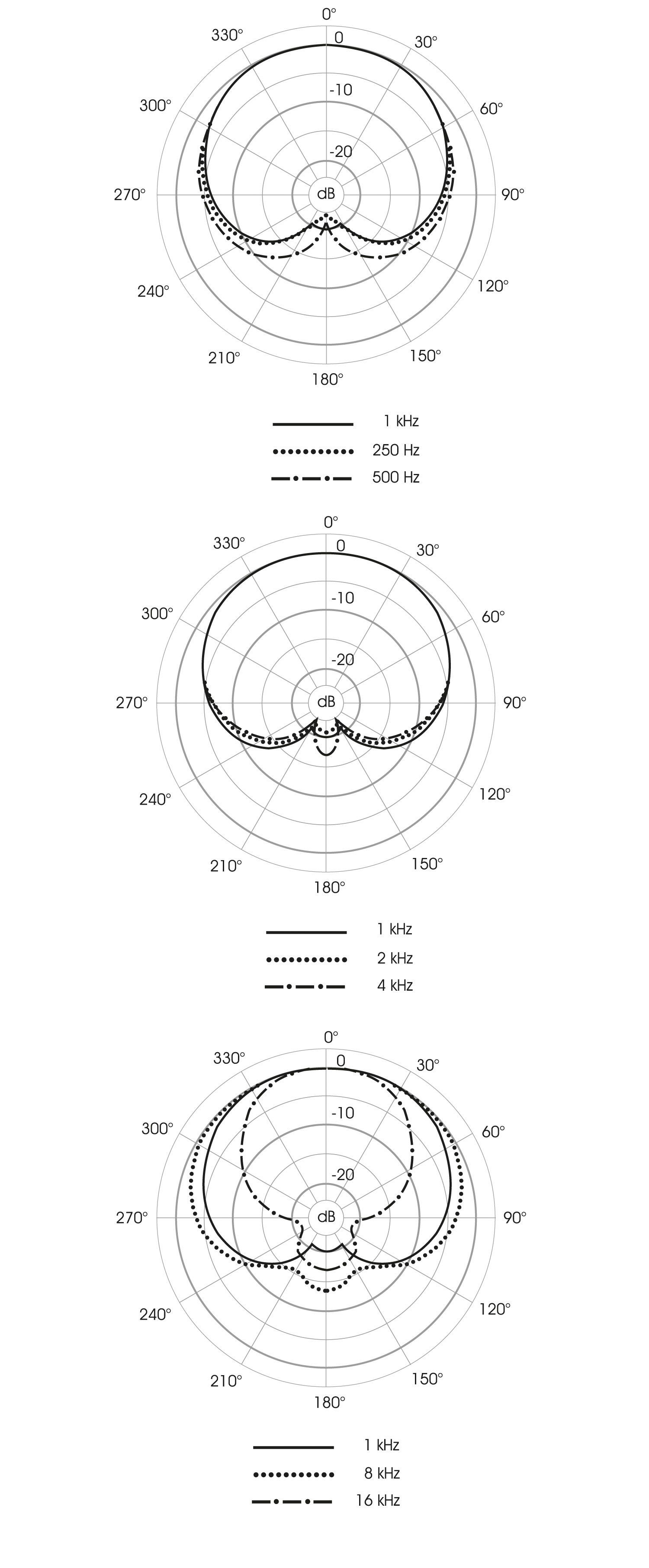

| Polar pattern | cardioid | |
| Acoustic operating principle | pressure gradient transducer | |

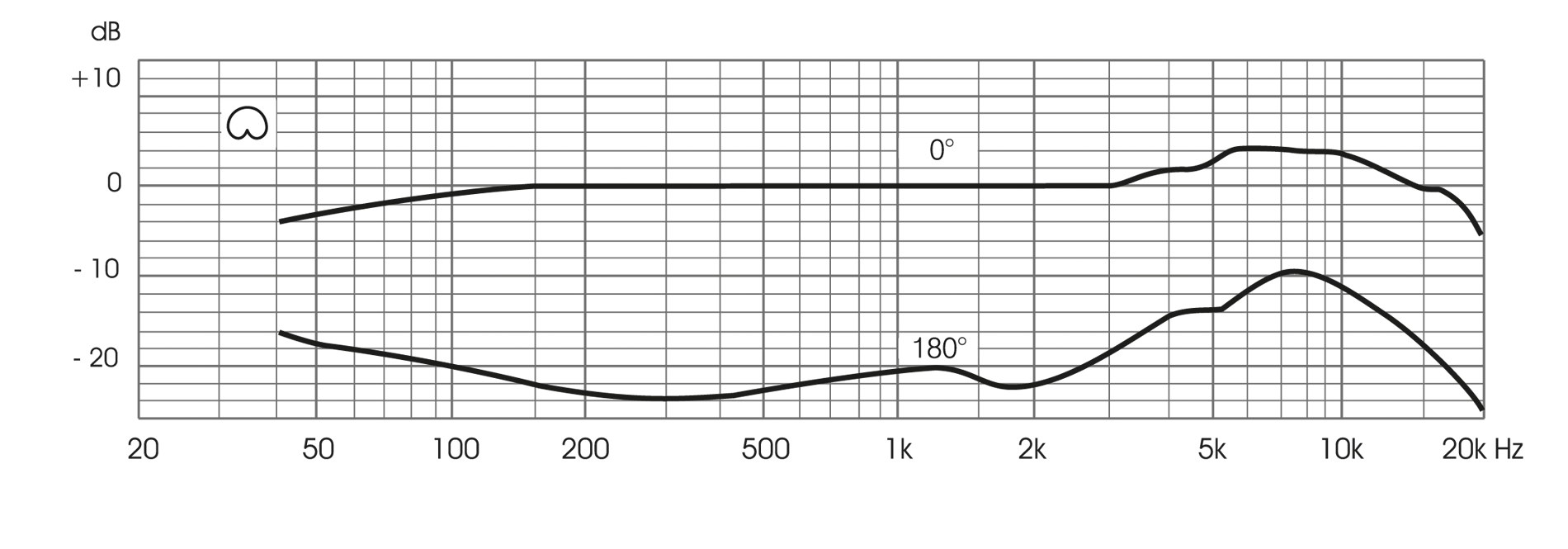

| Frequency range | 20 Hz to 20.000 Hz | |
| Sensitivity at 1 kHz | 13 mV/Pa | |
| Output impedance | 150 Ohm | |
| Noise level | CCIR 468-4 | 22 dB |
| DIN EN 60268-4 | 14 dB-A | |
| Signal-to-noise ratio | CCIR weighted | 72 dB |
| A-weighted | 80 dB | |
| SPL for THD 0,5 % | 135 dB | |
| with 10 dB preattenuation | 145 dB | |
| Dynamic range | 121 dB | |
| Current consumption | 3 mA | |
| Output connector | XLR3M | |
| Weight | 130 g | |
| Length | 166 mm | |
| Diameter | 21 mm | |
| Surface | satin nickel, black matt | |
