Spec
Transducer type | Capacitive pressure transducer | |

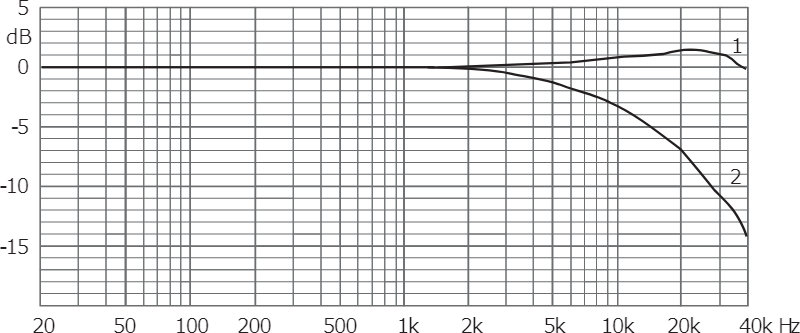

Frequency range | 10 Hz to 35 kHz (± 1,5 dB) | |
Open-circuit Sensitivity | 13 mV/Pa | |
Max. SPL for 3% THD at 1 kHz | 158 dB | |
Inherent noise with preamplifier MV 203 | 22 dBA | |
Polarization voltage | 0 V | |
Capacitance at 1 kHz | 18 pF | |
Operating temperature range | - 50 °C to +100 °C | |
Humidity limits | to 70°C, 90 % | |
Main ambient temperature coefficient | ≤ 0,01 dB/K | |
Main ambient pressure coefficient | -1 x 10-5dB/Pa | |
Diameter | without protection grid | 13,2 mm ± 0,02 mm |
with protection grid | 13,2 mm ± 0,02 mm | |
Height | 14,2 mm | |
Weight | 8,5 g | |
Preamplifier thread | 11,7 mm60 UNS | |
Protection grid thread | 12,7 mm 60 UNS |
