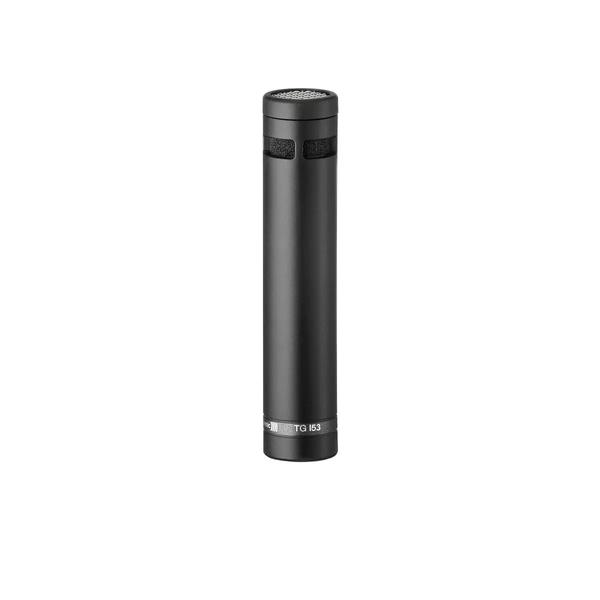

beyerdynamic TG I53

Transducer type

Condenser (back electret)

Operating principle

Pressure gradient

Polar pattern

Cardioid

Frequency response:

• Close miking: 20 - 20,000 Hz
• Distant miking (measured at 1 m): 35 - 20,000 Hz

Open circuit voltage

6.8 mV/Pa (-43.4 dBV) ±2.5 dB

Nominal impedance

200 Ω

Load impedance

≥ 1 kΩ

Max. SPL at 24 V and 48 V phantom power

140 dB

S/N ratio

61 dB [CCIR; Q-Peak], 71 dB [A; RMS]

Equivalent SPL

23 dB [A; RMS], 33 dB [CCIR; Q-Peak]

Power supply

Phantom power: 12 - 48 V (recommended: 48 V)

Power consumption

4.7 mA

Connection

XLR, 3-pin, male

Dimensions

100 x 19.5 mm

Weight (without clamp)

36 g
