Spec

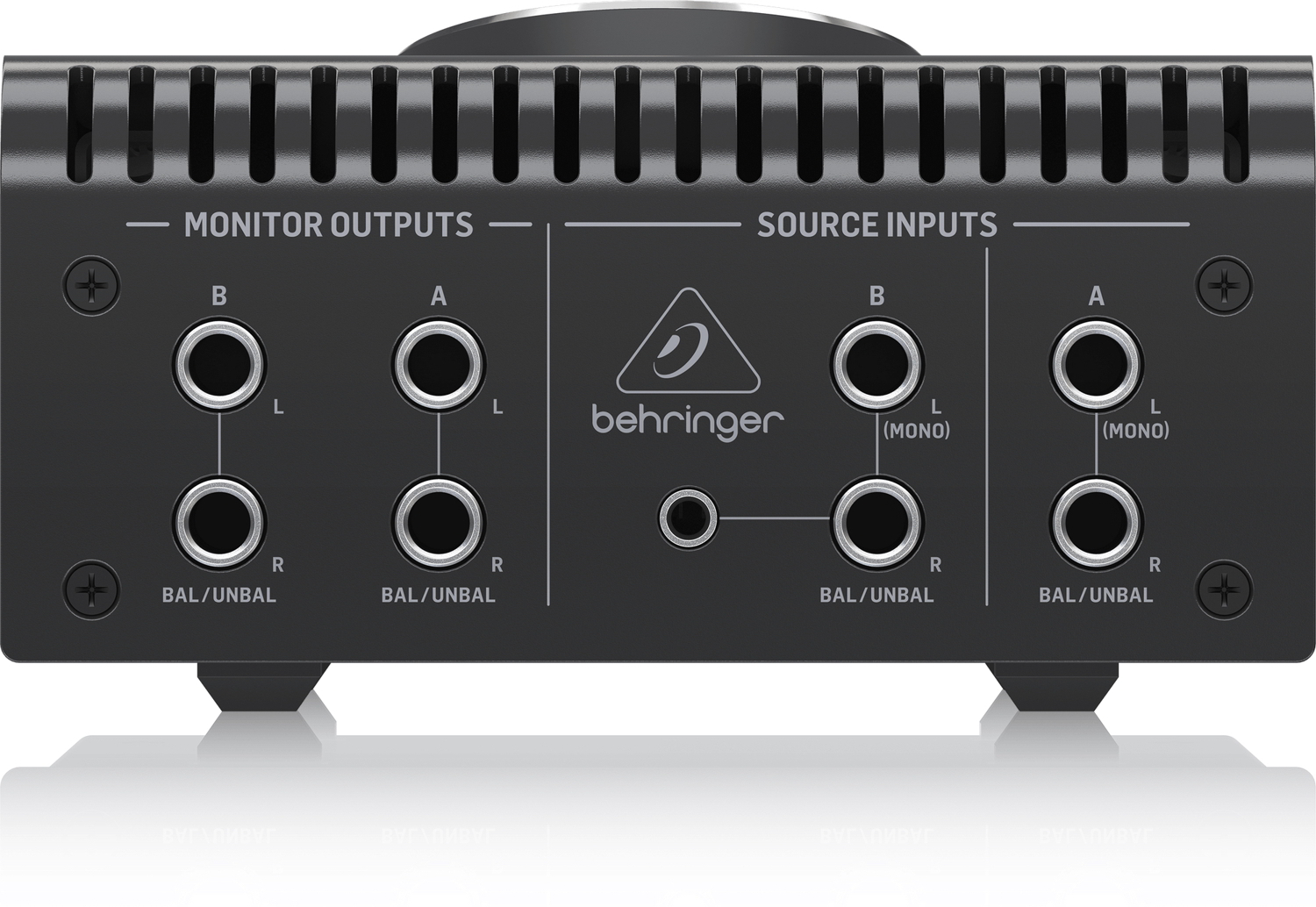

Inputs
Line inputs : 2 stereo
Type : 4 x 1/4" TRS, balanced or unbalanced
Alternative input B : 1 x 1/8" TRS, stereo
Outputs
Line outputs : 2 stereo
Type : 4 x 1/4" TRS, balanced or unbalanced

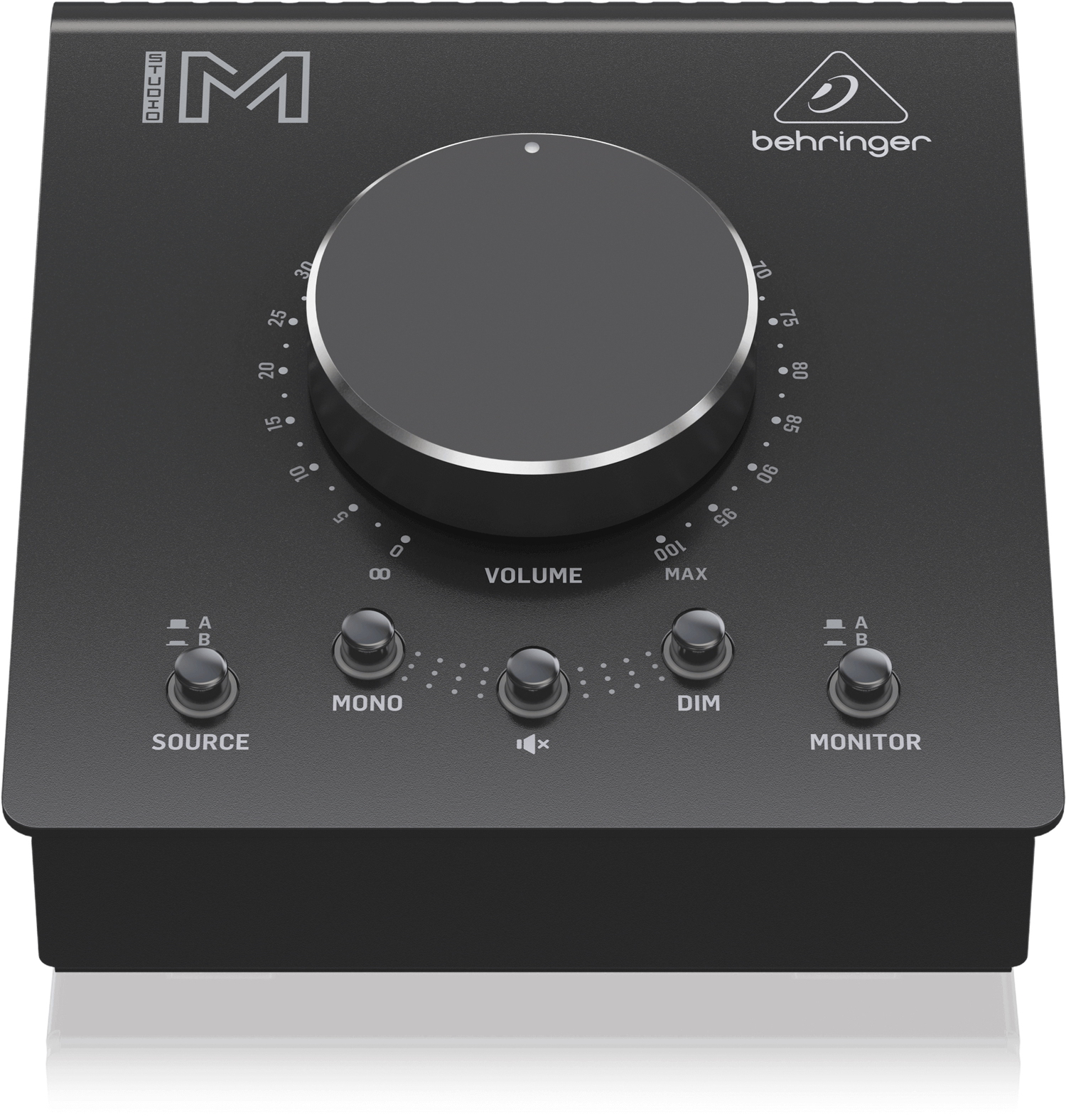

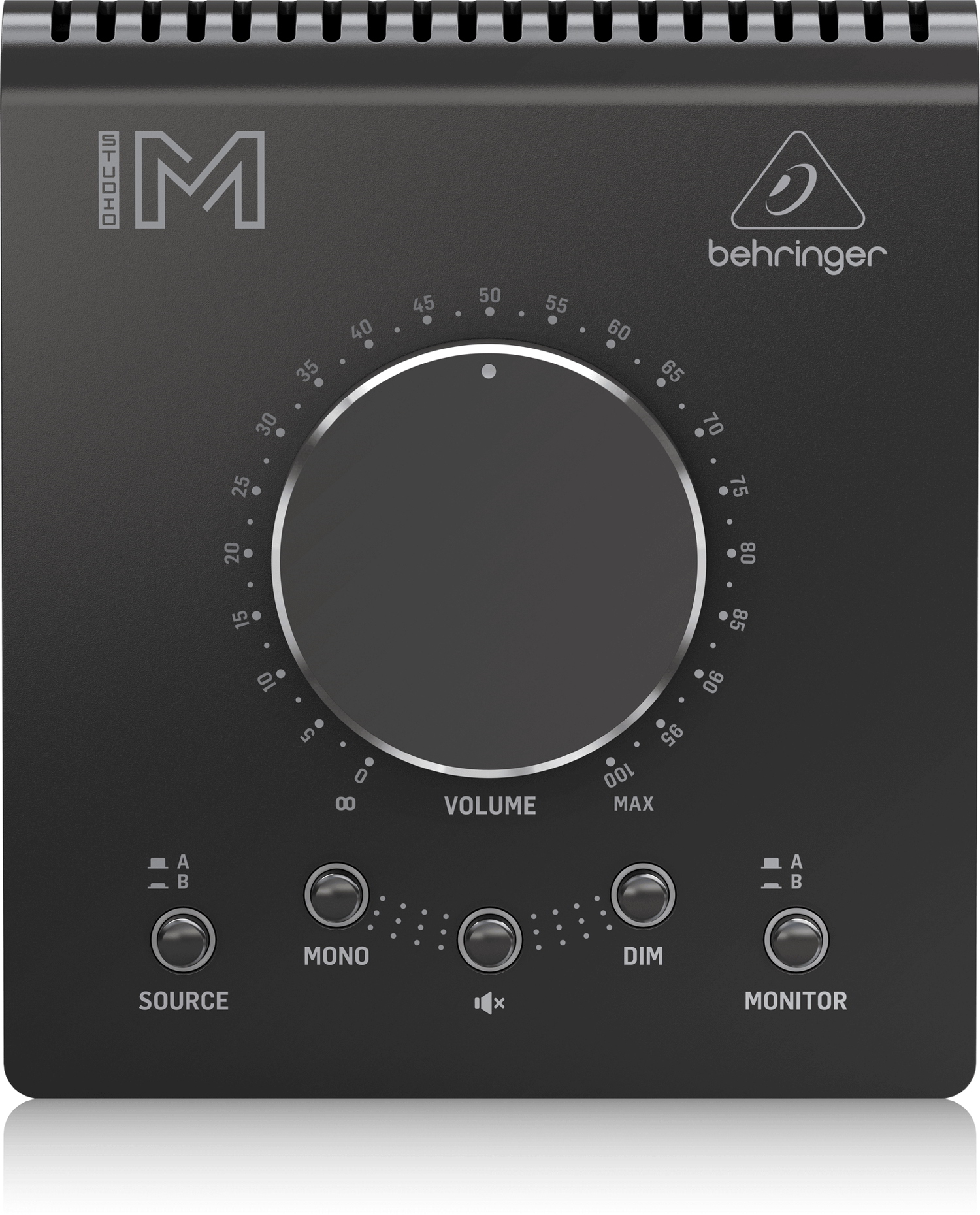

Controls
Volume : 0 - 100%
Playback controls : Mono, Mute, Dim
Monitor select : A, B
Source select : A, B
System
Frequency response : 20 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio : <-90 dBu RMS, un-weighted
Distortion (THD+N) : <0.01% @ 1 kHz, unity gain, 4 dBu input
Crosstalk : <-60 dB @ 1 kHz, unity gain, 4 dBu input
Attenuation
Muted : -100 dB
Dim : 20 dB
Maximum Levels
All inputs : +22 dBu
All outputs : +15 dBu
Line inputs : 2 stereo
Type : 4 x 1/4" TRS, balanced or unbalanced
Alternative input B : 1 x 1/8" TRS, stereo
Outputs
Line outputs : 2 stereo
Type : 4 x 1/4" TRS, balanced or unbalanced
Controls
Volume : 0 - 100%
Playback controls : Mono, Mute, Dim
Monitor select : A, B
Source select : A, B
System
Frequency response : 20 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio : <-90 dBu RMS, un-weighted
Distortion (THD+N) : <0.01% @ 1 kHz, unity gain, 4 dBu input
Crosstalk : <-60 dB @ 1 kHz, unity gain, 4 dBu input
Attenuation
Muted : -100 dB
Dim : 20 dB
Maximum Levels
All inputs : +22 dBu
All outputs : +15 dBu
