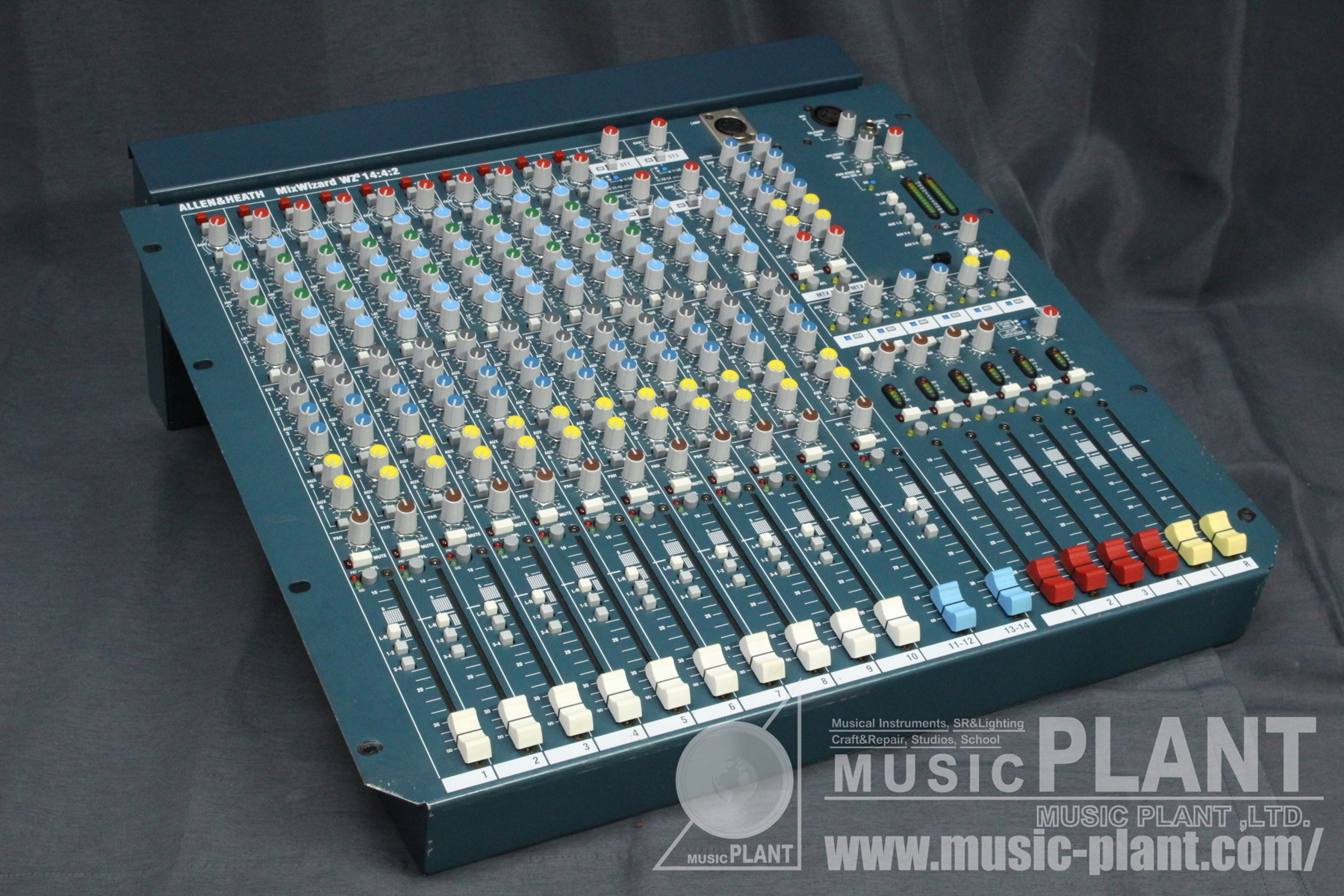

Spec
・10 mic/line inputs with balanced XLR/TRS jack and direct output
・Dual functionality - the aux master section can be reversed to provide up to 6 monitor sends, while the mono control and XLR can convert to an engineer’s listen wedge output
・6 auxiliary sends - switchable pre/post, all can be accessed at the same time
・4 audio groups - with panned sub grouping and feed to the matrix
・2 dual stereo inputs each with 4-band EQ, separate gain and ‘on’ switches. Two may be routed direct to LR to provide 4 independent stereo returns
・4-band EQ - comprehensive equalisation with 2 sweepable mids
・6×2 matrix - fed from groups 1-4 and LR, featuring an illuminated mute button, level control, and AFL. The matrix can be used to create custom mixes for recording, in-ear monitors, or PA loudspeaker zones
・Oscillator and pink noise generator for line-up and speaker testing
・Pluggable jumpers - for user configurability
・Mounting - desk or rack mountable, with rotating connector pod
・Sys-Link 2 input/output option - for connection to other Allen & Heath Sys-Link compatible consoles
Weights : 13kg
