Spec
Basic features
- Q factor
- 0.5 - 4
- Boost/Cut Range
- +/- 20 dB
- Hard wire bypass
- Yes
- All stepped manipulators
- Yes, Frequency selectors
Input & Output
- Input Impedance (balanced)
- 1k ohm
- Output Impedance (balanced)
- 600 ohm
- Audio transformers
- Carnhill on input, Edcor on output
Levels
- Operating Level
- +4 dBu
- Max input level
- +20 dBu
- Max output level
- +22 dBu
- Headroom (@ +4dBu)
- 18 dB
- Noise Level
- -99 dBA
Bandwidth

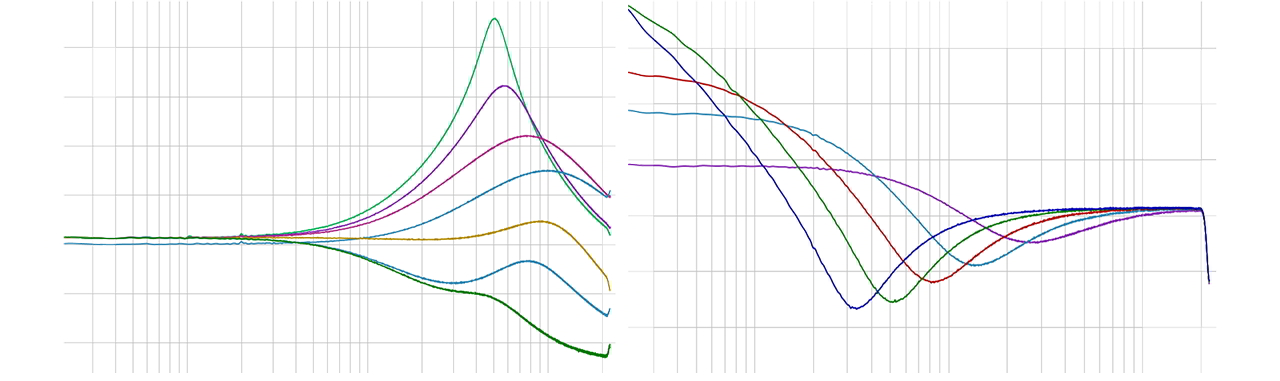

- Frequency response
- 20 Hz to 20k Hz, +/- 0.1 dB
Distortion (@ 20 Hz - 20 kHz)
- THD+N
- 0.012%
- Crosstalk
- 75 dB
Power
- Power consumption
- 7W
Packing box
- Shipping weight
- 1.5 kg
