Spec
| Transducer type | Capacitive pressure transducer | |

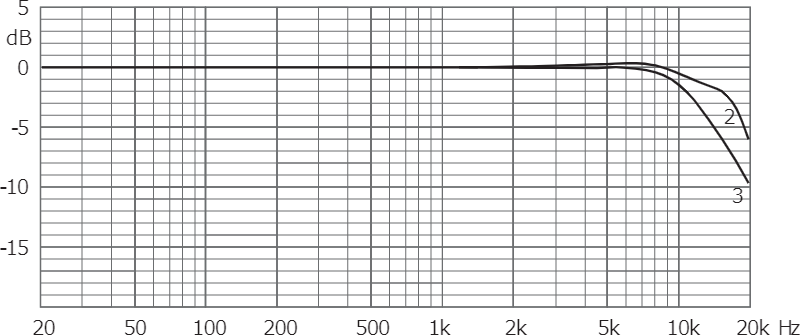

| Frequency range of the pressure response | 3,5 Hz to 8 kHz (± 1 dB) | |
| 3,5 Hz to 12,5 kHz (± 1,5 dB) | ||
| Open-circuit Sensitivity | 50 mV/Pa | |
| Open-circuit Sensitivity re 1 V/Pa | -26 dB ±2,5 dB re 1V/Pa | |
| Max. SPL for 3% THD at 1 kHz | 146 dB | |
| Inherent noise with preamplifier MV 203 | 15 dBA | |
| Polarization voltage | 200 V | |
| Capacitance at 1 kHz | 16 pF | |
| Operating temperature range | - 50 °C to +100 °C | |
| Main ambient temperature coefficient | ≤ 0,01 dB/K | |
| Main ambient pressure coefficient | -1 x 10-5dB/Pa | |
| Diameter | without protection grid | 12,7 mm ± 0,05 mm |
| with protection grid | 13,2 mm ± 0,05 mm | |
| Height | 16,4 mm | |
| Weight | 9 g | |
| Preamplifier thread | 11,7 mm60 UNS | |
| Protection grid thread | 12,7 mm 60 UNS | |
