Spec
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Recording/Playback:
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)
Rhythm Type: 42 groups, 672 patterns
Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
Memory: 99
- Maximum Input Level:
MIC IN: +6 dBu (with minimum mic gain)
INPUT 1/2: +8 dBu
AUX IN L/R: +8 dBu
Mic Input Gain Range: 5.4 dB - 63 dB
- Input Impedance:
MIC IN: 2.4 kΩ
INPUT 1/2: 1 MΩ
AUX IN L/R: 1 MΩ
- Output Impedance:
OUTPUT L/R: 1 kΩ
PHONES L/R: 3.3 Ω
- Bypass: Buffered bypass
- Display: 2.86″ Colored LCD display, 960 x 376 pixels

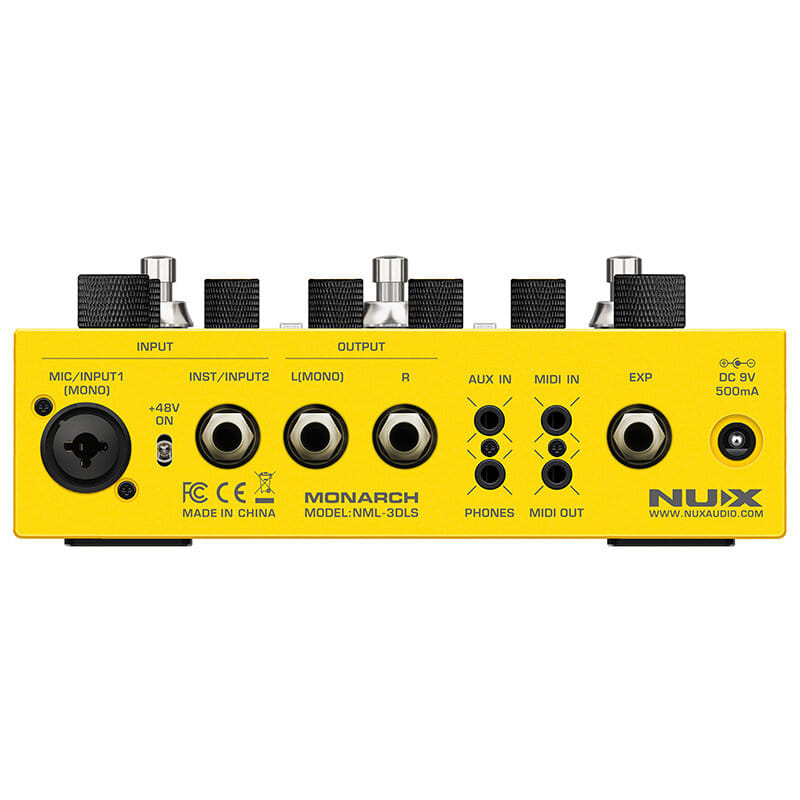

- Connectors:
MIC/INPUT 1: Combined XLR & 1/4 - inch type jack (balanced, phantom power: DC 48 V)
INST/INPUT 2: 1/4 - inch phone type jack
OUTPUT L (MONO): 1/4 - inch phone type jack
OUTPUT R: 1/4-inch phone type jack
AUX IN: 1/8-inch stereo miniature type jack
PHONES: 1/8-inch stereo miniature type jack
MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks
EXP jack: 1/4-inch
TRS phone type DC IN jack
USB port: USB-C type
- Power Supply: ACD-006A (9 V 500 mA)
- Current Draw: Less than 170 mA (Phantom power off) Less than 270 mA (Phantom power on)
- Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm
- Weight: 765 g

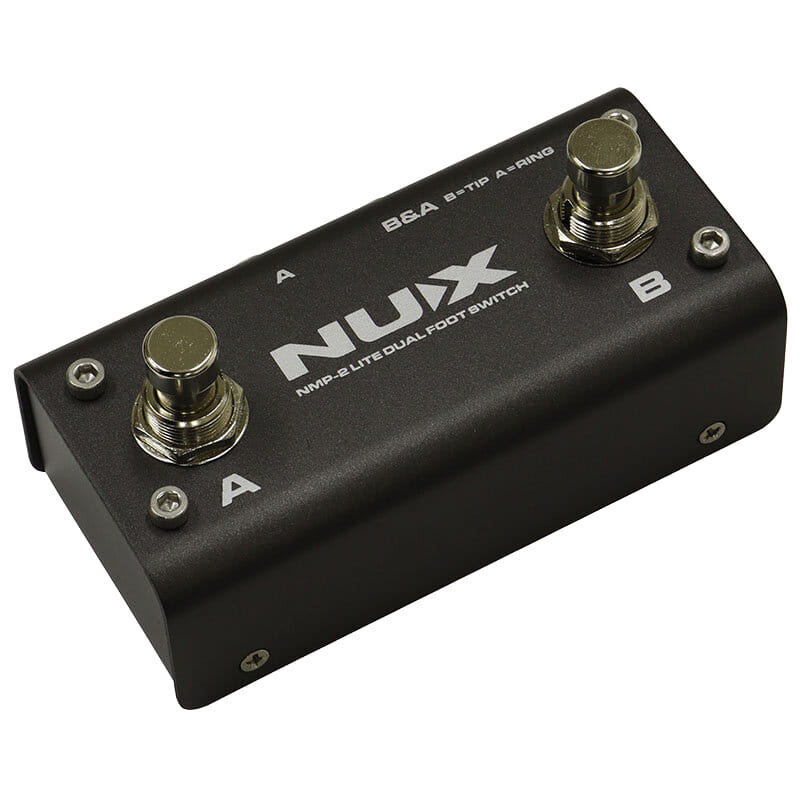

付属品: デュアルフットスイッチ (NMP-2 LITE)、フットスイッチ接続用ステレオパッチケーブル、USBケーブル 1/8” to 5 pin MIDI アダプター、ACアダプター(ACD-006A)
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Recording/Playback:
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)
Rhythm Type: 42 groups, 672 patterns
Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
Memory: 99
- Maximum Input Level:
MIC IN: +6 dBu (with minimum mic gain)
INPUT 1/2: +8 dBu
AUX IN L/R: +8 dBu
Mic Input Gain Range: 5.4 dB - 63 dB
- Input Impedance:
MIC IN: 2.4 kΩ
INPUT 1/2: 1 MΩ
AUX IN L/R: 1 MΩ
- Output Impedance:
OUTPUT L/R: 1 kΩ
PHONES L/R: 3.3 Ω
- Bypass: Buffered bypass
- Display: 2.86″ Colored LCD display, 960 x 376 pixels
- Connectors:
MIC/INPUT 1: Combined XLR & 1/4 - inch type jack (balanced, phantom power: DC 48 V)
INST/INPUT 2: 1/4 - inch phone type jack
OUTPUT L (MONO): 1/4 - inch phone type jack
OUTPUT R: 1/4-inch phone type jack
AUX IN: 1/8-inch stereo miniature type jack
PHONES: 1/8-inch stereo miniature type jack
MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks
EXP jack: 1/4-inch
TRS phone type DC IN jack
USB port: USB-C type
- Power Supply: ACD-006A (9 V 500 mA)
- Current Draw: Less than 170 mA (Phantom power off) Less than 270 mA (Phantom power on)
- Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm
- Weight: 765 g
付属品: デュアルフットスイッチ (NMP-2 LITE)、フットスイッチ接続用ステレオパッチケーブル、USBケーブル 1/8” to 5 pin MIDI アダプター、ACアダプター(ACD-006A)
