Spec
- Gain
- Pad Off, 13.6k Ohm load: -6dB
- Pad On, 13.6k Ohm load: -19dB
- Frequency Response
- ± 0.2dB (50Ω source, 13.6k load): 82Hz-27kHz
- ± 3dB (50Ω source, 13.6k load): 20Hz-80kHz
- Built-in High Pass Filter
- 2nd Order, Bessel: -3dB 20Hz
- THD+N 20Hz-20kHz BW
- -10dBu out, 1kHz: -102.8dB (0.00072%)
- -10dBu out, 50Hz: -83dB (0.0073%)
- -10dBu out, 25Hz (10Hz-20kHz BW): -72dB (0.023%)
- Intermodulation Distortion -10dBu Out
- SMPTE/DIN 1:1 (50Hz, 7kHz): -106dB (0.0005%)
- SMPTE/DIN 4:1 (50Hz, 7kHz): -99dB (0.0010%)
- Noise - Output Level 20Hz-20kHz
- Pad Off, 50Ω source: -116.2dBu
- Pad Off, Input disconnected (equivalent to 330pF source): -112.3dBu
- Pad On, 50Ω source: -113.1dBu
- Pad On, Input disconnected (equivalent to 330pF source): -113.0dBu
- Noise - Output Level A-weighted
- Pad Off, 50Ω source: -118.6dBu
- Pad Off, Input disconnected (equivalent to 330pF source): -114.9dBu
- Pad On, 50Ω source: -115.5dBu
- Pad On, Input disconnected (equivalent to 330pF source): -115.2dBu
- Phase Deviation
- <10°: 97Hz-7.5kHz
- Maximum Input Level (0.1% THD+N)
- 1kHz, Pad Off: 14dBu
- 1kHz, Pad On: 27dBu
- Maximum Output Level (0.1% THD+N)
- Balanced, 1kHz, 13.6kΩ Load: 8dBu
- Balanced, 1kHz, 3.65kΩ Load: 7.3dBu
- Impedance
- Input Pad Off: 1MΩ
- Input Pad On: 115kΩ
- Output: 330Ω
- Power Supply
- 48V Phantom Power, IEC 61938: 4mA max
- Weight
- 655g
- Size
- 134mmL x 100mmW x 44mmH
*48Vファントム電源専用です。

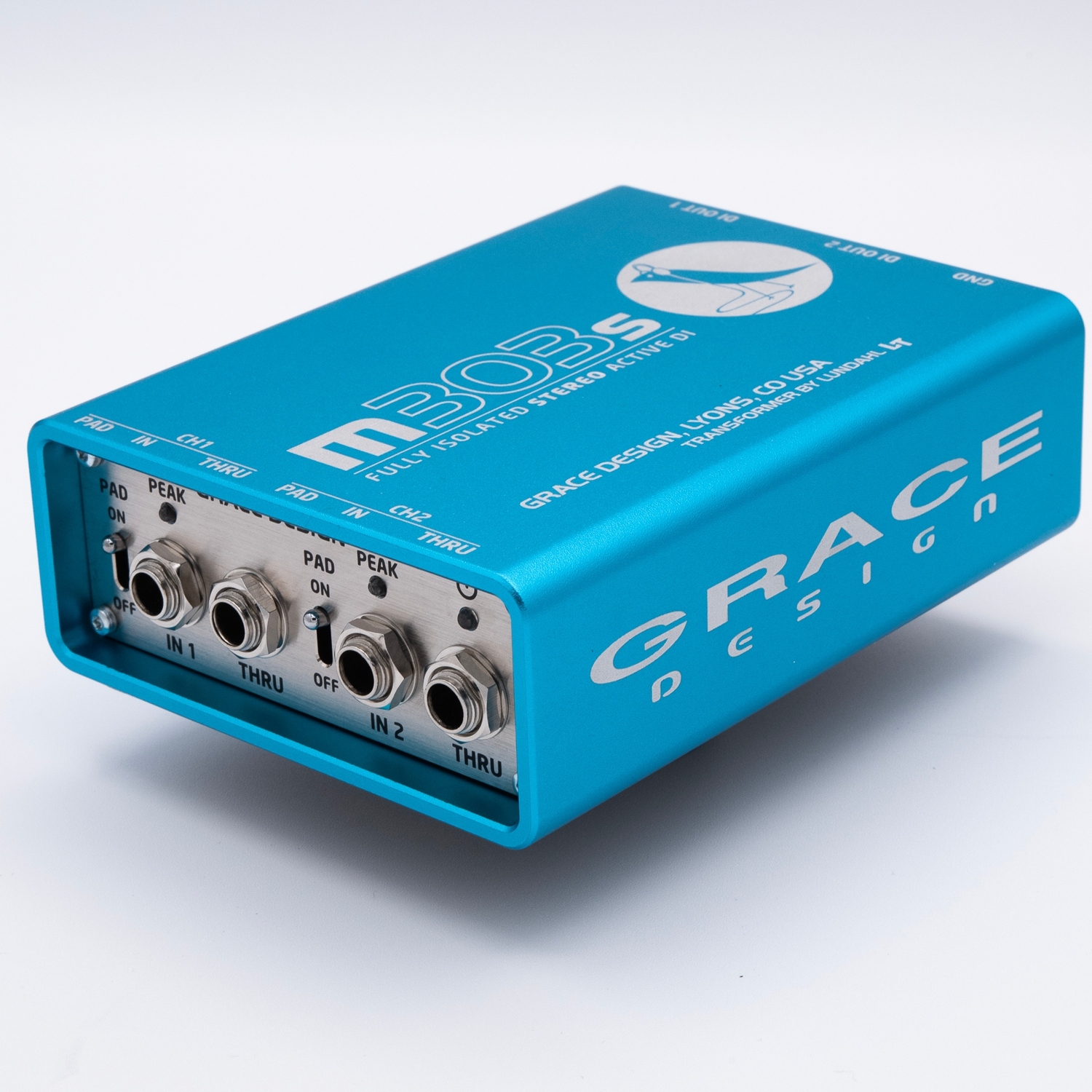

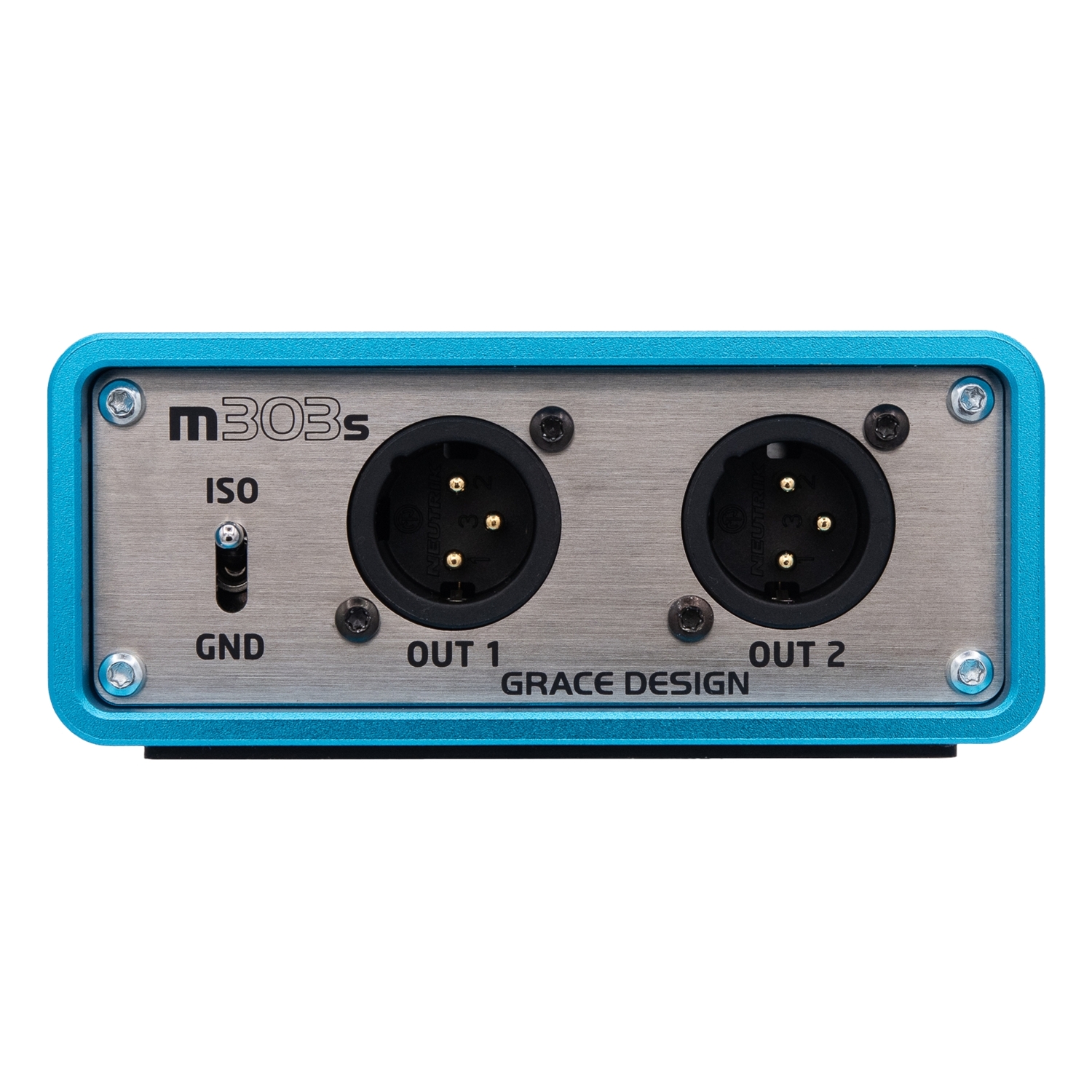

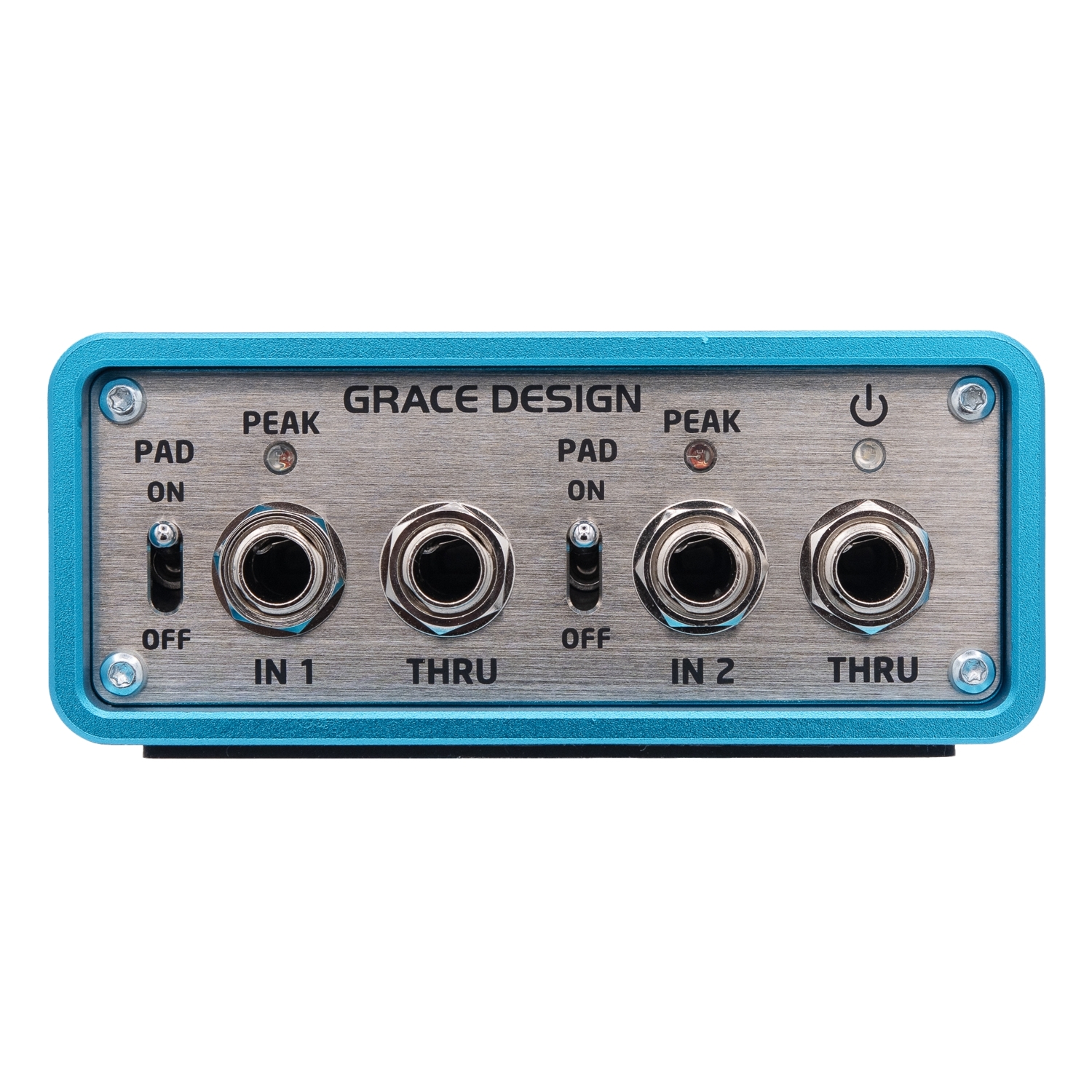

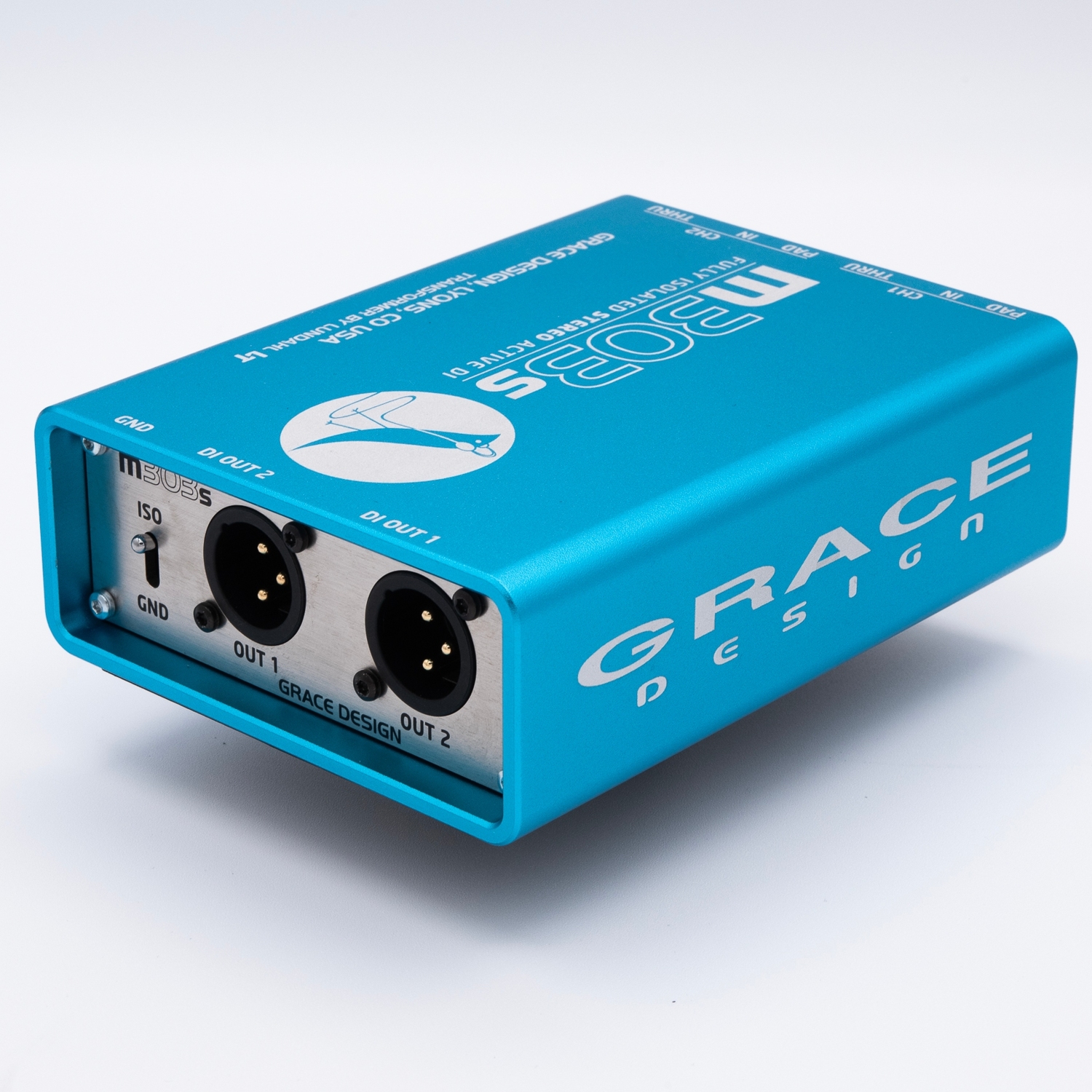

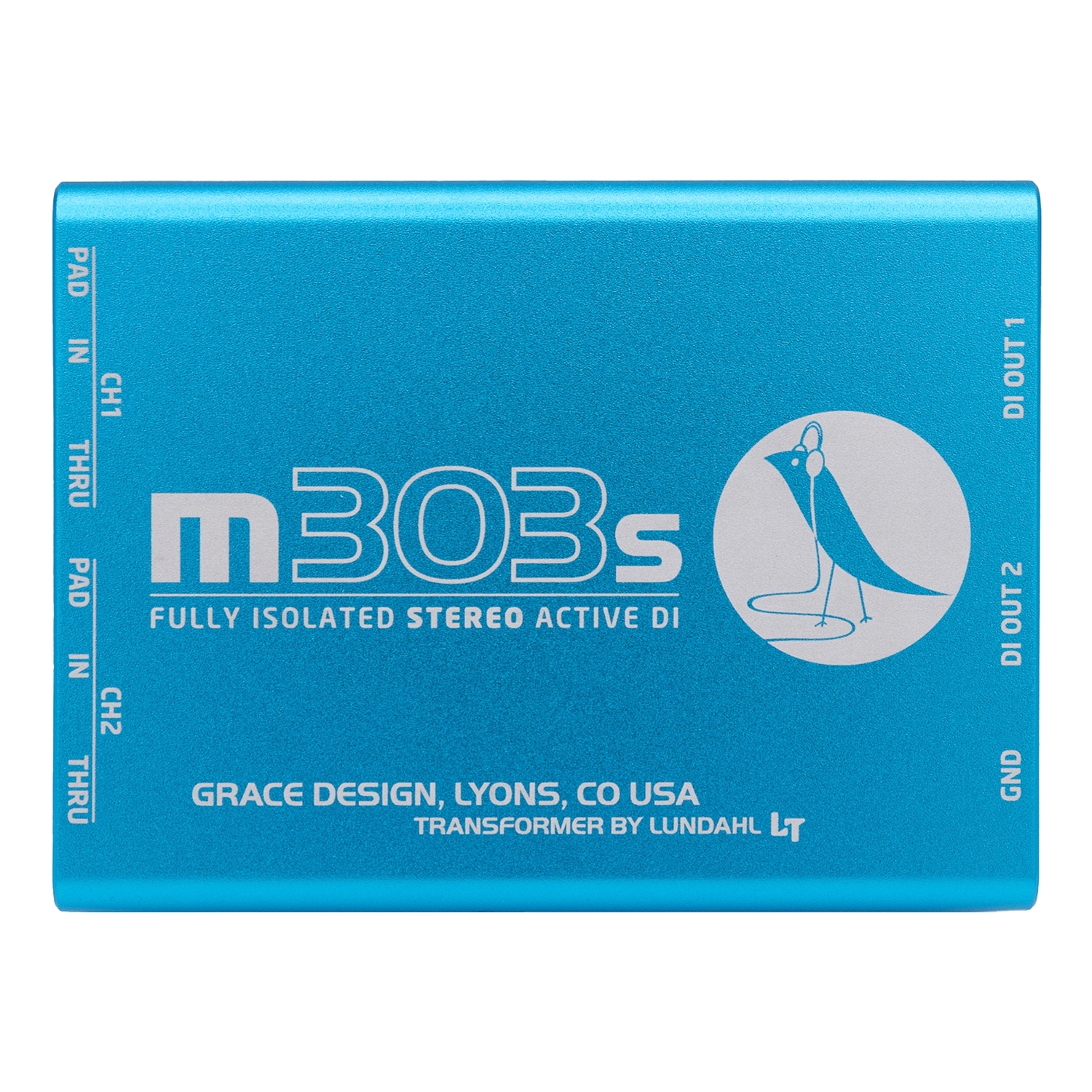

追加画像
