Spec
| Free field frequency response ±6 dB | 36 Hz ... 21 kHz |
|---|---|
| Free field frequency response ±3 dB | 39 Hz ... 20.4 kHz |
| Free field frequency linearity deviation between 100 Hz and 10 kHz | ±0.8 dB |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
| Sine wave output with a THD < 0.5 % at 1 m in half space | 95 dB SPL (>75 Hz) |
| Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 118.7 dB SPL |
| Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 112.7 dB SPL |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 107.5 dB SPL |
| Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 108 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) | 100 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) | 106 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) | 88 / 94 dB(C) SPL |
| Dolby D.A.R.D.T. Max SPL fullrange | 114 dB |
| Dolby D.A.R.D.T. Max SPL bass managed | 120 dB |
| Recommended Listening Distance | 1.0 … 2.5 m; (3'… 8') |
| Feasible Listening Distance | 0.75 … 6.0 m; (2'6"… 18') |
| Acoustic principle | Bassreflex, Ports at the front |
| Analog input(s) | XLR: analog electronically balanced |
| Analog input impedance | 24 kOhms |
| Analog input(s) | XLR: analog electronically balanced |
| Analog input impedance | 24 kOhms |
| Max. input level | +24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting |
| Common mode rejection ratio (CMRR) | >56 dB @ 15kHz |
| Volume control | via MA 1 software |
| Volume control range; resolution | 0 … -∞ dB; 0.1 dB |
| Analog dynamic range; THD+N | 118 dB, A-weighted, 90 dB |
| Signal routing modes | analog, S/PDIF L, S/PDIF R, S/PDIF mono |
| Digital input(s) | RCA (75 Ω): S/PDIF |
| Digital output(s) | RCA (75 Ω): S/PDIF |
| Max. Input Level; pk-pk, unbalanced / balanced | 1.2 V |
| Digital converter: resolution; design | 24 Bit |
| Digital converter: sampling rate | 32 kHz..200 kHz |
| Digital internal sampling rate | 48 kHz |
| Output sample rate | identical to input sample rate |
| Latency ADA / DA | Analog Input: 2.6 ms; SPDIF Input: 2.1 ms |
| Delay: User adjustable delay range | 0 … 120 ms |
| Delay: Resolution: time; distance | 20.8 µs |
| Delay: Max. frames Audio-video synchronisation (lip sync) | 0 … 120 ms for TOF=0ms, depends on APP implementation |
| Delay: Time-of-flight maximum distance | 0 … 120 ms for lipsync=0ms, depends on APP implmentation |
| Input gain control (sensitivity) | 0 dB ... -15 dB |
| Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
| Equalization: Bass | 0; -2; -4; -6 dB |
| Equalization: Low-Mid | 0; -2; -4; -6 dB |
| Equalization: Treble | +1; 0; -1; -2 dB |
| Input selector | Analog; S/PDIF L; S/PDIF R; Mono |
| Ground Lift | Yes |
| Control | Local; Network |
| Mains Switch | Yes |
| Mains Voltage Select | Universal Power Supply 100 V～ … 240 V～ |
| Controller design | Digital; active |
| Crossover frequency | 1700 Hz |
| Crossover slope | 24 dB / octave |
| Equalization: via Neumann.Control software | No |
| Automatic room calibration via MA 1 | Yes |
| FIR phase correction | Linear phase (105 Hz ... 16 kHz; +/- 45°) |
| Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers |
| Infrasonic filter: frequency; slope | 38 Hz; 12 dB / octave |
| Remote control | MA 1 software via an RJ45 connector carrying standard IP data |
| Display: On; Normal Operation | Neumann logo “White” |
| Display: Identification | Neumann logo “Rosé” |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Neumann logo “Red” |
| Logo Brightness | via MA 1 software |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 145 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 10%) | 100 W |
| Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) | 120 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) | 80 W |
| Mains Power Supply: input voltage; frequency | 100-240 V; 50/60 Hz |
| Power consumption (230 V / 100 V): Standby | 0.3 W |
| Power consumption (230 V / 100 V): Idle | 15 W |
| Power consumption (230 V / 100 V): Full output | 320 W |
| Standby | automatic, 90 mins (default); user defined in software |
| Cabinet material | Composite polycarbonate front and rear, wooden sleeve |
| Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) / Black (RAL 9005) |
| Operating conditions | ° C (+50° F to +104° F); <75% RH, non-condensing |
| Transport/storage conditions | -25° C to +60° C (-13° F to 140° F); <90% RH; non-condensing |
| Woofer | 165 mm; (6.5") with protecting black metal grille |
| Tweeter | 25 mm; (1") with protecting black metal grille |
| Mounting points | 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8”) |
| Product dimensions (height x width x depth) | 345 x 225 x 273 mm; (13.58" x 8.86" x 10.75") |
| Internal net volume | 12.6 l |
| External net volume | 20.4 l |
| Packed dimensions (height x width x depth), mm (inches) | 480 x 303 x 403 mm; (18.9" x 11.9" x 15.9") |
| Product weight | 8.0 kg; (17 lbs 10 oz) |
| Packed weight | 9.4 kg; (20 lbs 12 oz) |
| Packaging weight inc. Cables and manuals | 1.41 kg; (3 lbs) |

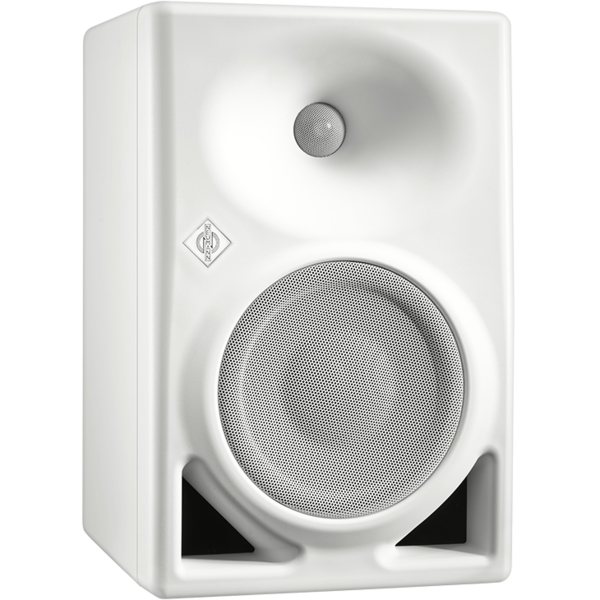

追加画像
