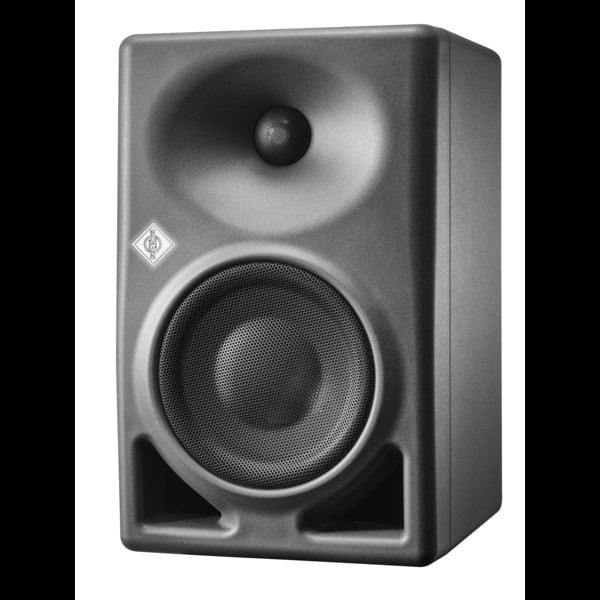

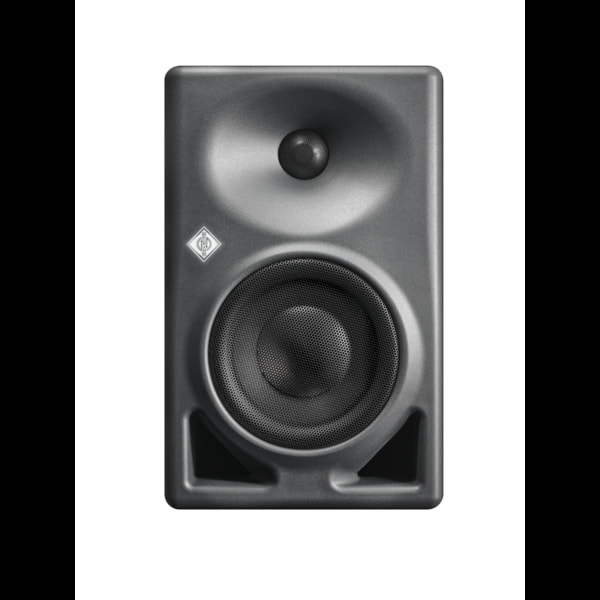

NEUMANN   KH 120 II

2ウェイパワード・ニアフィールドモニター

KH 120 IIは、高い評価を得た前モデルと同じコンセプトに基づいていますが、完全に再設計され、より深い低音、より高いSPL能力、さらに優れた解像度など、すべてのパラメーターで性能が向上しています。内部DSPパワーにより、位相リニアクロスオーバーとノイマンの革命的なMA 1自動アライメントによる部屋適応型アライメントが可能です。
2010年にNeumannがKH 120 Aをリリースしたとき、それは継続的なサクセスストーリーの始まりでした。それ以来、ノイマンのモニターは、世界中の数え切れないほどのスタジオで選ばれるリファレンスとなりました。KH 120 IIは、前モデル、そしてすべてのNeumannスタジオモニターと同じ哲学に従っています:最高の直線性、最小の歪み、色付けなし、そしてどんな音響環境にも完璧に適応することです。KH 120 IIは、すべてのパラメーターの性能向上と強力なDSPエンジンにより、トラックをよりクリアに聴くことができ、より効率的に作業することができます。あらゆる再生システムに最適なミックスを作成することができます。簡単に。
KH 120 IIは、44Hzから21kHz(±3dB)までの極めてリニアな周波数特性を有しています。そればかりではありません:位相特性もリニアになります!そのため、クリアな中音域と驚異的な透明感、そして時間領域における極めて高い精度、すなわち正確なインパルス再生と繊細なリバーブ再生を実現します。これは、アナログフィルターによる位相歪みを回避する高度なクロスオーバーを可能にするDSP制御のエレクトロニクスによって実現されています。また、内蔵DSPは、音色の一貫性においても新たな基準を実現しています。KH 120 IIは、±0.5dBという極めて低い公差で製造されています! そして、あなたもそれを聴くことができます:ステレオイメージは非常にシャープです。

KH 120 IIはニアフィールド用に設計されており、推奨リスニング距離は1~2メートルです。そのため、ホームスタジオやプロジェクトスタジオ、ミキシングや編集室などの小さな部屋や、大規模なマルチチャンネルアプリケーションでのサラウンドスピーカーとして理想的です。また、KH 120 IIは、その優れたリニアリティを活かして、オーケストラや合唱団、ライブレコーディング、映画、放送などのロケで、プロ品質の即席コントロールルームを作るのにも最適な選択肢です。

税別価格¥135,000-
税込価格 ¥ 148,500 -

送料無料!!

沖縄及び離島,遠隔地は除きます

両店扱い ,新品です

受注発注品です。

お問い合わせはこちらから!

To customers live in overseas!

数量:

Spec

Free field frequency response ±6 dB
41 Hz ... 21.4 kHz
Free field frequency response ±3 dB
44 Hz ... 21 kHz
Pass band free field frequency response
48 Hz … 20.5 kHz, ±1.25 dB
Free field frequency linearity deviation between 100 Hz and 10 kHz
±0.7 dB
"Reproduction accuracy between 100 Hz and 10 kHz:100%, 80%, 50% of loudspeakers produced"
±0.45; ±0.30; ±0.17 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)
<20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space
95 dB SPL (>97 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
116.8 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
110.8 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)
105.1 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions
108 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)
98 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)
104 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)
88 / 93 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)
87 / 93 dB(C) SPL
Dolby DARDT. Max SPL fullrange
113 dB SPL
Dolby DARDT. Max SPL bass managed
119 dB SPL
Recommended Listening Distance
1.0 … 2.0 m; (3'… 6')
Feasible Listening Distance
0.75 … 4.0 m; (2'6"… 12')
Acoustical Principle
Bassreflex, Ports at the front
Analog input(s)
XLR: analog electronically balanced
Analog input impedance
24k Ohms
Max. input level
+24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting
Common mode rejection ratio (CMRR)
>56 dB @ 15kHz
Volume control
Volume control
Volume control range; resolution
0 … -∞ dB; 0.1 dB
Analog dynamic range; THD+N (A-D-A)
118 dB, A-weighted, 90 dB
Digital input(s)
RCA (75 Ω): S/PDIF
Digital output(s)
RCA (75 Ω): S/PDIF
Max. Digital Input Level; pk-pk, unbalanced / balanced
1.2 V
1.2 V
24 Bit
24 Bit
32 kHz..200 kHz
Dynamic range A-D
121 dB(A)
Dynamic range A-D-A (Converter)
118 dB(A)
Dynamic range D-A
121 dB(A)
121 dB(A)
-18 dBFS = 100 dB SPL at 1 m, to be confirmed by acoustics team
Latency ADA / DA
Analog Input,: 2.6 ms; SPDIF Input: 2.1 ms
Delay: User adjustable delay range
0 … 120 ms
0 … 120 ms
20.8 µs
Delay: Max. frames Audio-video synchronisation (lip sync)
0 … 120 ms for TOF=0ms, depends on APP implmentation
Delay: Time-of-flight maximum distance
0 … 120 ms for lipsync=0ms, depends on APP implmentation
Input gain control (sensitivity)
0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level)
94; 100; 108; 114 dB SPL
Equalization: Bass
0; -2; -4; -6 dB
Equalization: Low-Mid
0; -2; -4; -6 dB
Equalization: Treble
+1; 0; -1; -2 dB
Input Select
Input Select
Ground Lift
Yes
Control
Local; Network
Mains Switch
Yes
Mains Voltage Select
-; Universal Power Supply 100 V~ … 240 V~
Controller design
Digital; active
DSP resolution
32 Bit Audio, Processing 64 Bit double precision
Crossover frequency
1700 Hz
1700 Hz
48 dB / octave
FIR phase correction
Linear phase (120 Hz ... 16 kHz; +/- 45°)
Protection circuitry
Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
Infrasonic filter: frequency; slope
40 Hz; 12 dB / octave
Remote control
MA 1 software via an RJ45 connector carrying standard IP data
Display: On; Normal Operation
Neumann logo “White”
Display: Identification
Neumann logo “Rosé”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute
Neumann logo “Red”
Logo Brightness
via MA 1 software
"Output power woofer amplifier(THD+N with limiter deactivated: 10%)"
145 W
"Output power tweeter amplifier(THD+N with limiter deactivated: 10%)"
100 W
"Output power woofer amplifier(THD+N with limiter deactivated: 0.1%)"
120 W
"Output power tweeter amplifier(THD+N with limiter deactivated: 0.1%)"
80 W
Mains Power Supply: input voltage; frequency
100-240 V; 50/60 Hz
Power consumption (230 V / 100 V): Standby
0.3 W
Power consumption (230 V / 100 V): Idle
15 W
Power consumption (230 V / 100 V): Full output
320 W
In-rush current (Peak) /230VAC)
33 A
Cabinet material
Composite polycarbonate front and rear, wooden sleeve
Cabinet surface finish; color (front / back)
Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
Operating conditions
+10° C to +40° C; (+50° F to +104° F); <75% RH, non-condensing
Transport/storage conditions
-25° C to +60° C; (-13° F to 140° F); <90% RH; non-condensing
Woofer
130 mm; (5.25") with protecting black metal grille
Tweeter
25 mm; (1") with protecting black metal grille
Mounting points
2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8”)
Product dimensions (height x width x depth)
287 x 182 x 227 mm; (11.3 " x 7.16 " x 8.94")
Internal net volume
6.0 l
External net volume
11.3 l
Product weight
Product weight
Packed dimensions (height x width x depth), mm (inches)
422 x 271 x 381 mm; (16.6 x 10.7 x 15 ")
Packed weight
6,6 kg; (14 lbs 8 oz)
Packed cube
0.043m³; (1.52 ft³)
Acoustical Axis horizontal
91 mm; (3.6 ")
Acoustical Axis vertical (from bottom)
166 mm; (6.5 ")

追加画像

クリックで別ウインドウで拡大します。

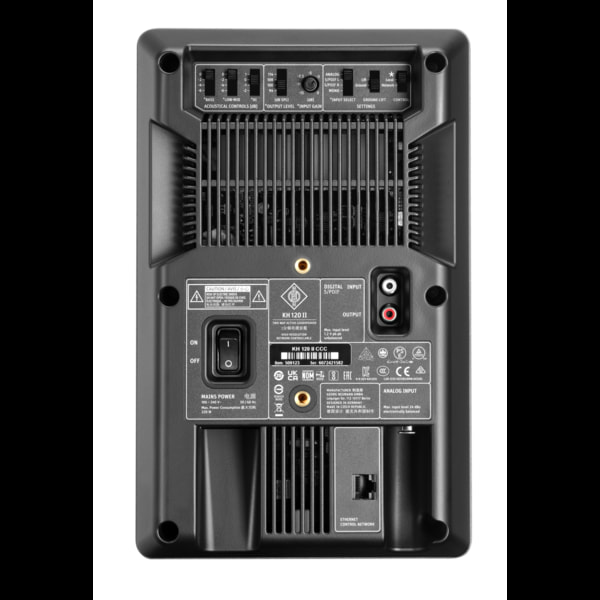

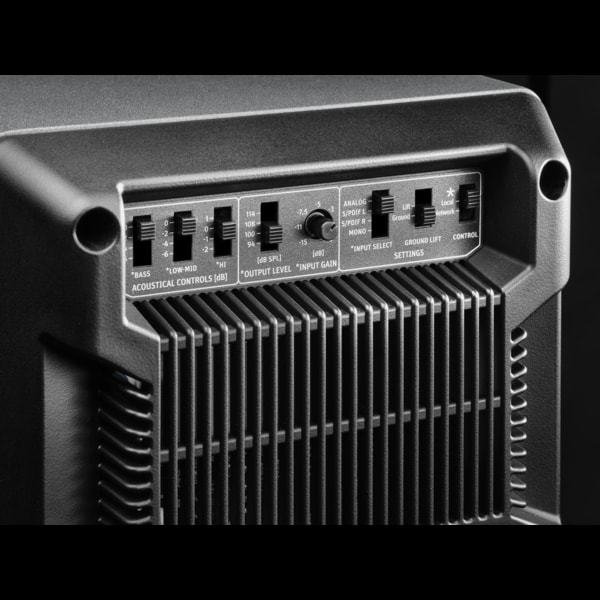

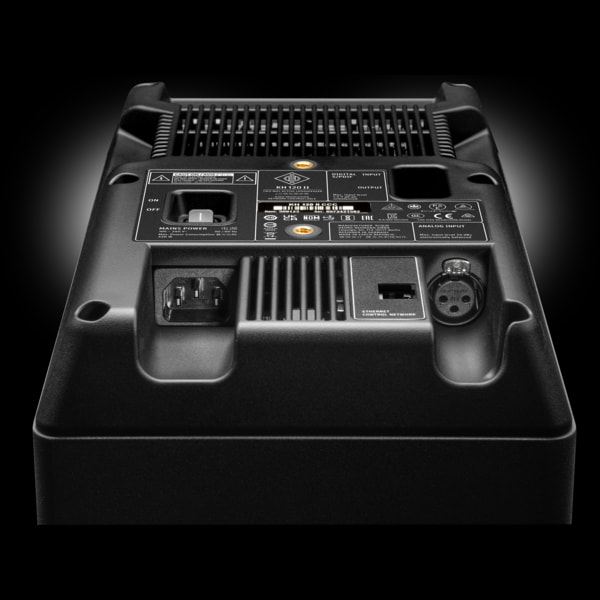

KH 120 II背面画像 KH 120 IIパネル画像 KH 120 II追加画像 KH 120 II追加画像 KH 120 II追加画像 KH 120 II追加画像 KH 120 II追加画像 KH 120 II追加画像
