Spec
- Transducer type
- Condenser (back electret)
- Operating principle
- Pressure

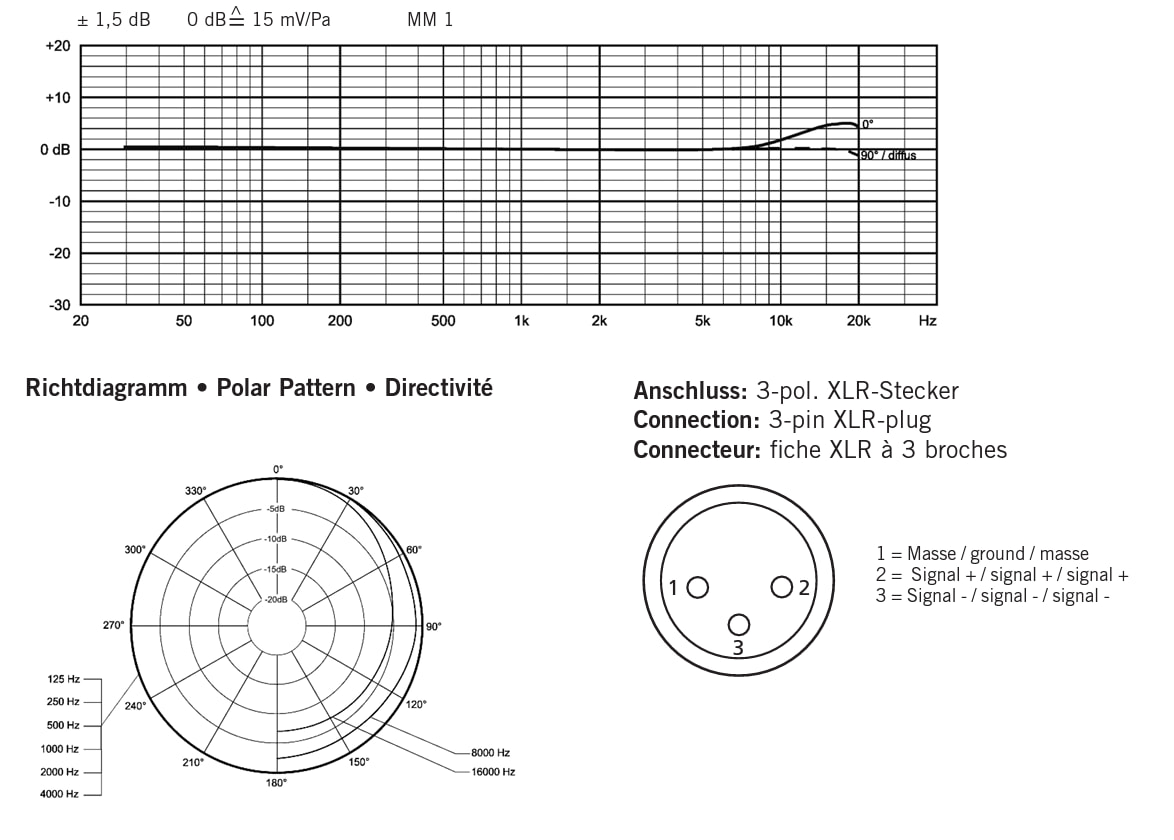

- Polar pattern
- Omnidirectional, diffuse field calibrated
- Frequency response
- 20 - 20,000 Hz (50 - 16,000 Hz ± 1.5 dB)
- Open circuit voltage at 1 kHz
- 15 mV/Pa (=-36.5 dBV) ± 1 dB
- Max. SPL at f = 1 kHz, k = 1%, RL = 2.2 kΩ
- 122 dBSPL
- Nominal impedance
- 160 Ω
- Nominal load impedance
- > 2.2 kΩ
- S/N ratio rel. to 1 Pa
- > 57 dB
- A-weighted equivalent SPL
- Approximately 26 dB(A)
- Power supply
- 12 - 48 V phantom supply
- Current consumption
- Approximately 1.9 mA
- Output
- Electronically balanced
- Connection
- XLR-plug, 3-pin
pin 1: ground
pin 2: signal +
pin 3: signal - - Dimensions
- Length: 133 mm
Diameter: 19/9 mm - Weight (w/out cable)
- 88 g
