Spec
- Transducer type
- True condenser
- Operating principle
- Pressure gradient

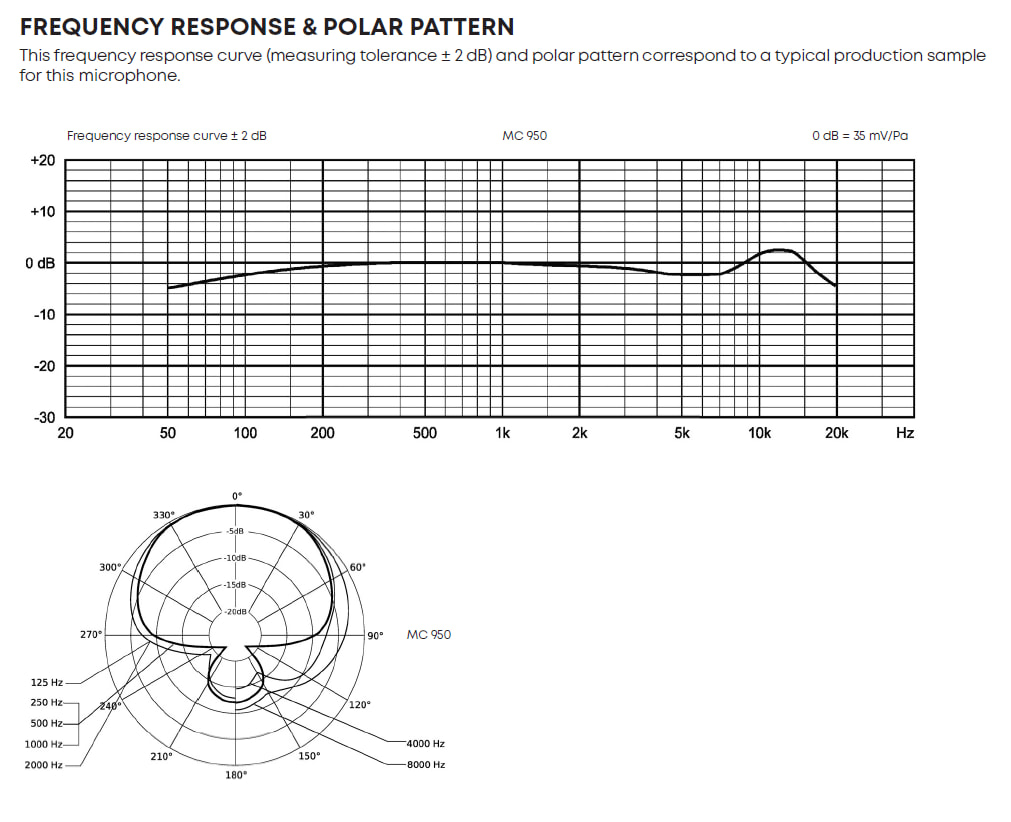

- Frequency response
- 40 - 20,000 Hz
- Polar pattern
- Supercardioid
- Open circuit voltage at 1 kHz (0 dB = 1 V/Pa)
- 35 mV/Pa = -29 dBV
- Nominal impedance
- 180 Ω
- Load impedance
- 1000 Ω
- Max. SPL at 1 kHz
- 124 dB
- Max. SPL with pre-attenuation
- 139 dB
- Signal-to-noise ratio rel. to 1 Pa
- 72 dB
- A-weighted equivalent SPL
- 15 dB
- Low-cut filter
- Switchable, 6 dB/octave at 250 Hz
- Power supply
- 11 - 52 V phantom power
- Current consumption
- 4.6 mA
- Connector
- 3-pin XLR male
- Dimensions
- Length: 128 mm
Diameter: 21 mm - Weight without cable
- 115 g
